Available sizes
| Clay bricks | 210x65x100 mm | 58 tk/m² |
|---|---|---|
| Brick slips | 210x65x20 mm | 58 tk/m² |
| Brick slip corners | 210x65x20x100 mm |
Physical properties
| Euro CE (EN 771-1) |
|---|
| Belgium BENOR (PTV 23-002) |
Dimensions and durability
| Resilience category | Class T2 |
|---|---|
| Scope category | Class R1 |
Description
This hand-moulded facing brick is made from Limburger löss clay from the Kesselt tableland in the valley of the Meuse and revalue with raw materials from the Volcanic Eifel.
Pressure
The facade bricks (non-perforated) have fi ve sand covered sides and one oblong groove. The structure looks rugged with fi ne and irregular grooves in the sandy surface. The baking process takes place in a gas-heated tunnel oven under slightly reduced atmos- phere.
Color

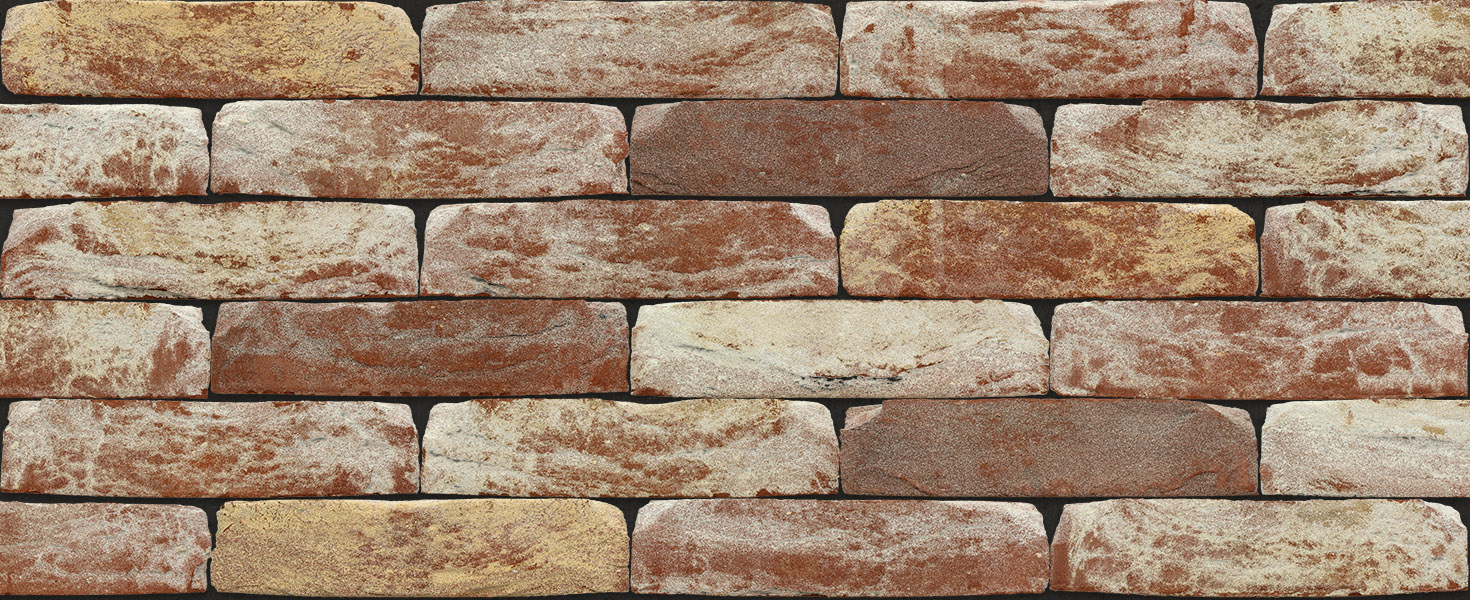

The brick has a reddish base.The typical old aspect is the result of the wet and unbaked bricks’ treatment with various admixtures. In addition, the various types of sand are responsible for calcareous sediments slightly diminishing the red colour. The hues range from soft red to dark red with beige, white and grey shadings. The moulding procedure with the specifically for the purpose designed hand-moulding equipment ensures an extremely close resemblance with real recuperated bricks, combined with the identical physical features of our entire wide variety of products. The bricks are coarse-grained and irregularly shaped.
Technical specifications
| Pressure | 25 N/mm² |
|---|---|
| Clamping force |
0,15 N/mm² if jointed 0,3 N/mm² thin layer cooled |
| Reaction to fire | Euro class A1 |
| Water absorption | < 14% |
| Primer for water absorption | 4 kg/m².min |
| Water evaporation rate | 5/10 (table value EN 1745)s |
| Total density | 1600 kg/m³, D2 |
| Purity | 1660 kg/m³, D2 |
| Freezing / Thawing Resistor |
F2, cold class D, respectively, BRL 1007 Highly frost resistant according to PTV 23-002 |
| Characteristic compression strength | 20 N/mm² according to PTV 23-002 |
