Available sizes
| Clay bricks | 210x65x100 mm | 58 tk/m² |
|---|---|---|
| Brick slips | 210x65x20 mm | 58 tk/m² |
| Brick slip corners | 210x65x20x100 mm |
Physical properties
| Euro CE (EN 771-1) |
|---|
| Belgium BENOR (PTV 23-002) |
Dimensions and durability
| Resilience category | Class T2 |
|---|---|
| Scope category | Class R1 |
Description

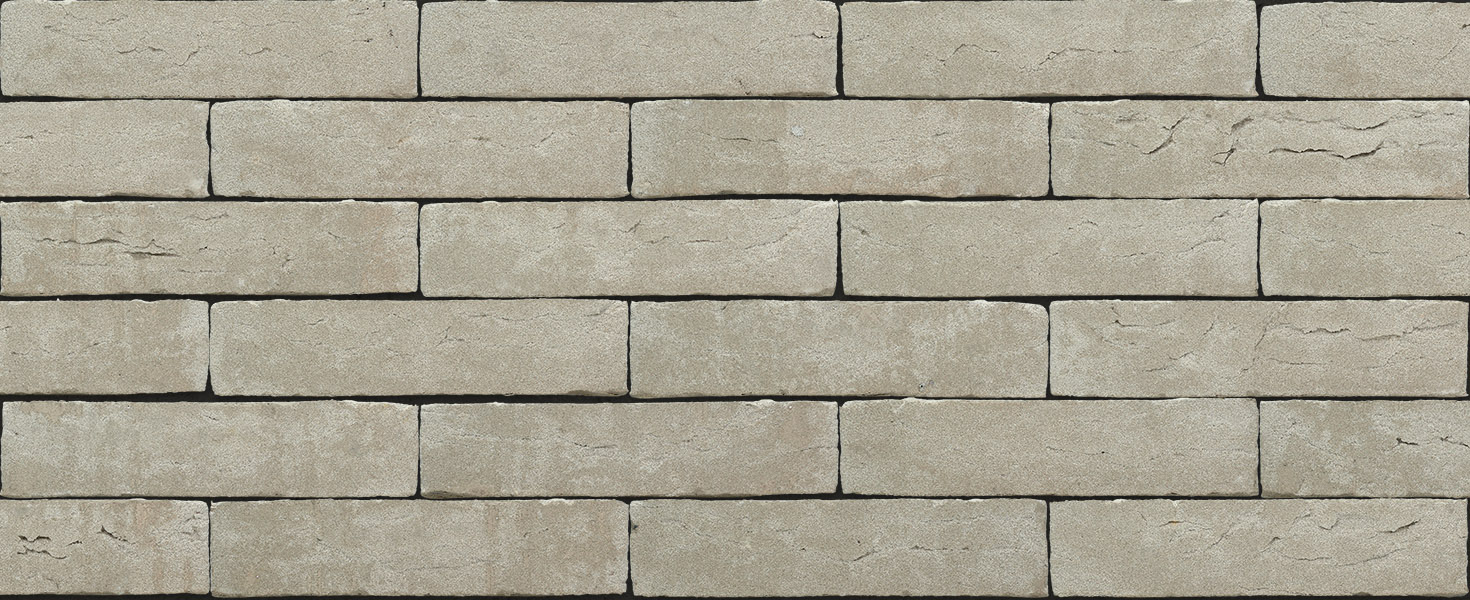

A beautiful grey façade.Grey is a hand-moulded facing brick from the Rodruza range of Nelissen Brickworks.This facing brick is available in "hand-moulded" (sanded, grained) and "mould box" (sanded, smooth). The Grey is manufactured from Westerwald clay, a naturally white clay extracted from the plateau of Westerwald, in western Germany. The brick is a uniform, grey facing brick, in accordance with the Dutch Standard NEN EN 771-1.
Pressure
The non-perforated brick is covered with sand on five sides.
Color
The brick is a uniform, grey facing brick
Technical specifications
| Pressure | 25 N/mm² |
|---|---|
| Clamping force |
0,15 N/mm² if jointed 0,3 N/mm² thin layer cooled |
| Reaction to fire | Euro class A1 |
| Water absorption | < 7% |
| Primer for water absorption | 1,5 kg/m².min |
| Water evaporation rate | 5/10 (table value EN 1745)s |
| Total density | 1900 kg/m³, D2 |
| Purity | 2000 kg/m³, D2 |
| Freezing / Thawing Resistor |
F2, cold class D, respectively, BRL 1007 Highly frost resistant according to PTV 23-002 |
| Characteristic compression strength | 20 N/mm² according to PTV 23-002 |
