Available sizes
| Clay bricks | 210x65x100 mm | 58 tk/m² |
|---|---|---|
| Brick slips | 210x65x20 mm | 58 tk/m² |
| Brick slip corners | 210x65x20x100 mm |
Physical properties
| Euro CE (EN 771-1) |
|---|
| Belgium BENOR (PTV 23-002) |
Dimensions and durability
| Resilience category | Class T2 |
|---|---|
| Scope category | Class R1 |
Description
This hand-moulded facing brick is made from Lim- burger löss clay from the Kesselt tableland in the valley of the Meuse and revalue with raw materials from the Volcanic Eifel.
Pressure
The facade bricks (non-perforated) have fi ve sand covered sides and one oblong groove. The struc- ture looks rugged with fi ne and irregular grooves in the sandy surface. The baking process takes place in a gas-heated tunnel oven under slightly reduced atmosphere.
Color

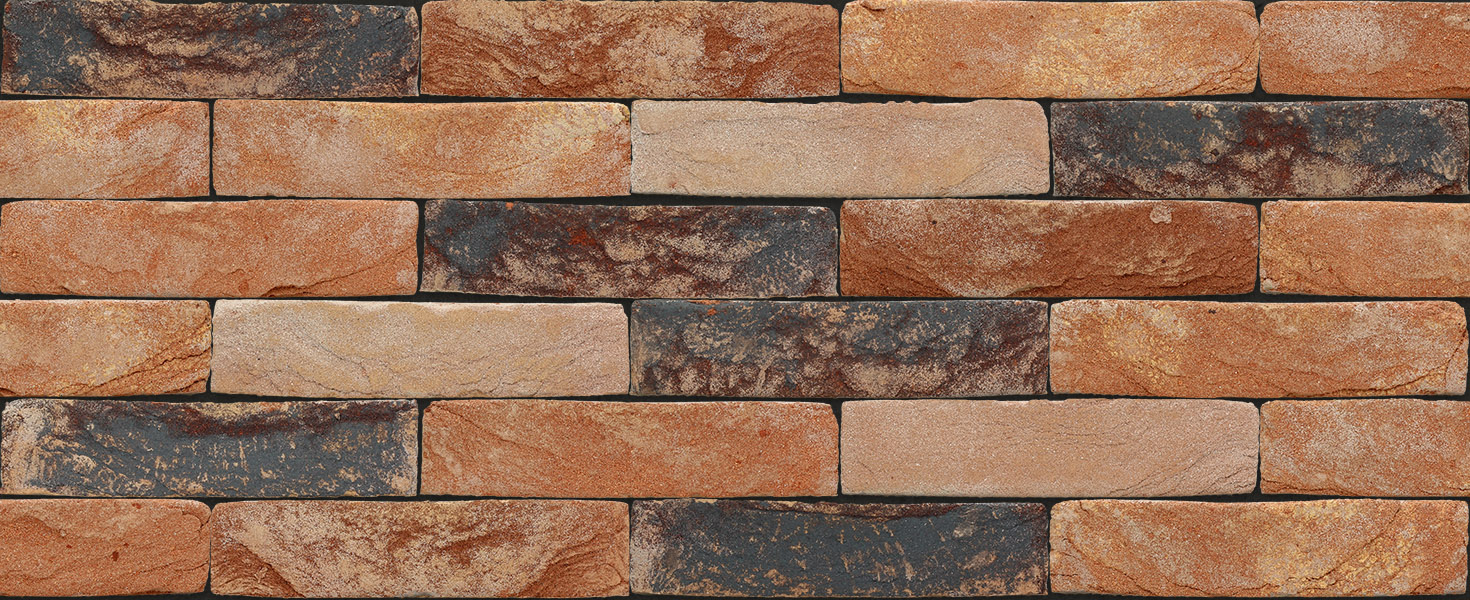

The brick has a pink base, and the colour varia- tions show pastel hues ranging from orange-red to purple-red alternated with yellow and blue-grey shadings in accurately defi ned proportions.
Technical specifications
| Pressure | 25 N/mm² |
|---|---|
| Clamping force |
0,15 N/mm² if jointed 0,3 N/mm² thin layer cooled |
| Reaction to fire | Euro class A1 |
| Water absorption | < 17% |
| Primer for water absorption | 2,5 kg/m².min |
| Water evaporation rate | 5/10 (table value EN 1745)s |
| Total density | 1540 kg/m³, D2 |
| Purity | 1600 kg/m³, D2 |
| Freezing / Thawing Resistor |
F2, cold class D, respectively, BRL 1007 Highly frost resistant according to PTV 23-002 |
| Characteristic compression strength | 20 N/mm² according to PTV 23-002 |
